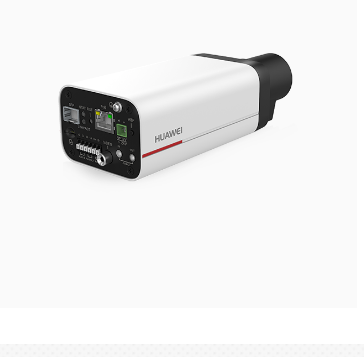

IPC6125-WDL-P 2MP Low-light WDR Network Box Camera

Features
 H.265, H.264 and MJPEG video compression standard
 1080p@60fps
 Dual-channel 1080p HD video encoding
 Ultra Wide Dynamic Range (WDR) up to 120 dB
 Highlight suppression
 Auto defogging
 Intelligent analytics
 Acousto-optic assisted manual focus
 Ultra wide operating voltage range
 DC/AC supply can be hot standby for PoE
Specification
s
Model Item IPC6125-WDL-P
Camera
Image sensor 1/2.8" 2.0 megapixel progressive scan CMOS
Effective pixels 1920(H)×1080(V)
Min. Illumination
Color: 0.005lux （F1.2，AGC ON）
B/W: 0.002lux （F1.2，AGC ON）
Day/Night mode Auto/Color/Monochrome (removable infrared-cut filter)
Electronic shutter
speed
1/100000s to 1s
Gain control Automatic / Manual
Wide dynamic range 120dB
Backlight
compensation
Supported
Highlight
suppression
Supported
Image stabilization Electronic image stabilization
Defog Automatic/Manual
White balance Auto/Auto-Track/Manual//OnePush
Digital noise
reduction
Self-adaptive to 2D or 3D DNR
Lens
Lens interface C- or CS-mount
Auto Iris DC-Iris
Focus Acousto-optic assisted manual focus
Function
Video compression H.265 / H.264 / MJPEG
Max. Resolution 1920×1080
Frame rate 60Hz:60/30/20~1fps / 50Hz:50/25/20~1fps
Video bit rate 32 kbit/s to 16 Mbit/s
Multiple streaming Double Full HD(1080p) streams /Treble streams
Media stream set
Four predefined packages(High quality, Balanced, Low bandwidth,
and Mobile devices) and four customized packages
ISP packages
Five predefined typical scenarios(Outdoor, Indoor, Motion capture,
Low-light, and Backlight mode) and eight user-defined scenarios.
Audio compression G.711a/G.711u/G.726/OPUS
Audio
communication
Voice intercom, voice broadcast, and channel-associated voice
PU access protocol
ONVIF Profile S/G,GB/T 28181-2014, Genetec Protocol v1.00 and
HUAWEI SDK(private protocol)
Network protocol
TCP，UDP，IPv4，IPv6，DHCP，DHCPv6，DNS，ICMP，ICMPv6，
IGMP，HTTPS，FTP，SFTP，RTP，RTSP，RTCP，SIP，ARP，SSL，
NTP，SNMP（V1/V2/V3），802.1x，QoS，DDNS
Security mode
User name and password authentication, 802.1x , and HTTPS
digital certificate
Stream encryption AES128/192/256 encryption algorithm, and digital watermark
Intelligent analytics
Tripwire detection, loitering detection, intrusion detection,
abandoned object detection, removed object detection, object
color recognition, vehicle and pedestrian classification, and
metadata backhaul
Intelligent
detections
Four areas for motion detection and tampering detection
Alarm actions
External alarm output, PT preset position, PT Guard tour, SD card
recording and snapshot.
Interface
Ethernet interface 1x RJ-45 10/100 Base-T self-adaptive Ethernet port
Serial interface
1x RS-485 port, supporting PELCO-P/D protocol (phoenix
connector) , transparent channel
Alarm interface
1-channel alarm input and 1-channel alarm output (phoenix
connector)
Analog video
interface
1-channel CVBS output (RCA connector)
Audio interface
1-channel audio input and 1-channel audio port (3.5mm mono
connector)
Memory card slot
1x Micro SD/SDHC/SDXC slot supporting memory card up to 64 GB
General Parameter
Power supply
12VDC±25%; PoE(IEEE 802.3af/at) ; Adapter can be hot standby
for PoE
Power consumption Typ.3.2W , Max.4.9W;
Operating
temperature
–20° to +60°
–40° to +65° C (Install with a shield )
Operating humidity 5% to 95% (non-condensing)
Surge suppression 6kV, complies with IEC 61000-4-5
Weight (No lens) Net weight: 450 g; gross weight: 600 g
Dimensions (No lens)
Physical dimensions: 80.7×62.5×143.5 mm
Packing dimensions: 228.0×123.0×105.0 mm
